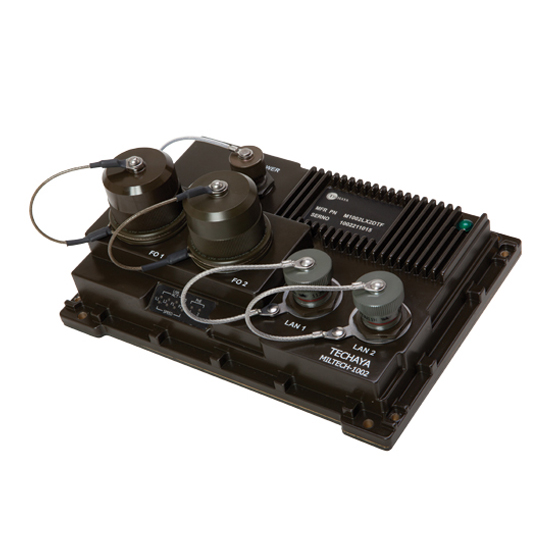

MILTECH 1000 Series

Rugged Military Media Converters

The MILTECH 1000 is a series of MIL-STD media converters which transparently connect copper to fiber. Our 10/100/1000 Ethernet to Fiber Converters provide an economical path to extend the distance of an existing network, the life of non-fiber based equipment, or the distance between two devices of up to 120Km over fiber in military and other harsh environments.

Watch MILTECH 1000 Rugged Media Converter during Shock Test for Naval here

download datasheet

Product Description


Advanced features such as Auto-Negotiation, Auto MDI-II, MDI-X, FDX, HDX, and Flow control along with Link Pass-Through and Fiber Fault Alert allow for more efficient troubleshooting and less on-site maintenance.
Each unit is equipped with a MIL-D-38999 connector and an option to support PoE on 2 copper ports (IEEE802.3af and IEEE802.3at). The MILTECH 1000 Series comes in a variety of configurations with up to 2 Gigabit Copper Ports 10/100/1000Base-TX (MIL-D-38999 connector) and 2 100/1000Base-FX fiber ports. It can be configured with a wide range of fiber connectors such as MIL-D-38999, TFOCA-II, TACBEAM and also CTOS (Expanded beam).

All the MILTECH 1000 series products are designed for MIL-STD-810F, MIL-STD-461E, MIL-STD-1275B airborne, ground mobile environmental and EMI/RFI compliance for high reliability.

SPECIFICATIONS

Product Model MILTECH 1000
Management N/A
Ports Up to 2 x 10/100/1000 Base TX and up to 2 x 100/1000 Base FX Media
IMMERSION IP67
DIMS 170 mm x 151 mm x 61 mm
Connector F/O: MIL-D-38999, TFOCA II, CTOS, ARINC 801, TACBeam
Weight 1.5 Kg
Operating Temp -45°C to +85°C
MIL-STD MIL-STD-810F/G/M, MIL-STD-461E, MIL-STD-1275, MIL-STD-704A
Power 18-32VDC, 2.8W (Typical)
