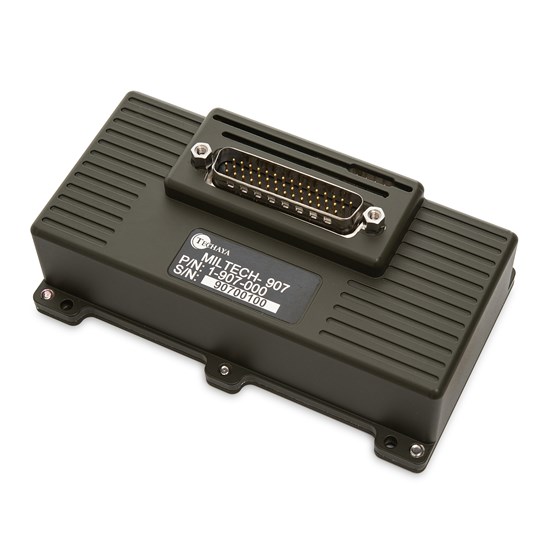

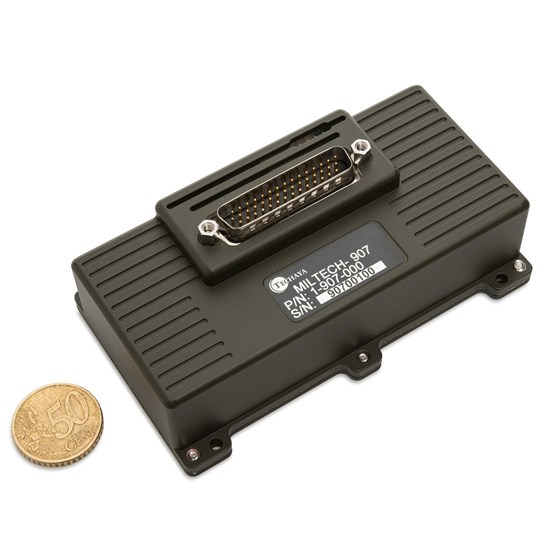

The MILTECH 907 is a MIL-STD, fully managed military grade network switch offering 5 triple-speed (10/100/1000Mbps) ports. It enables interconnectivity of network devices and data transmission in military platforms with one high density D-Type 44 pin connector and can be remotely managed to optimize communications and prioritize critical information traffic. Advanced network features, never before found in a package of this size, include switching protocols, virtual LANS (VLANS), traffic prioritization (QoS), and bandwidth aggregation are standard. The MILTECH 907’s gigabit speeds and 24VDC power make it instantly compatible with network device and power systems. The MILTECH 907 is widely used in battlefield communications C4ISR, video, and sensor data acquisition, and transmission. Its mechanical packaging enhancements, including High Density D-Type 44 pin connector, is designed for MIL-STD-810F airborne and ground environmental compliance and high reliability.
Modern platforms contain dozens of network devices that must be interconnected. The MILTECH 907 is an ideal solution for mobile Ethernet-equipped platforms. Leveraging best-in-class switching technology from Techaya, the MILTECH 907serves as a robust commercial off-the-shelf (COTS) solution for rugged LAN connectivity, which can be used in a wide range of military and commercial applications, including:
• Land autonomous vehicles (UGVs)
• Mobile equipment fielded in harsh environments
With the best combination of size, weight, power and cost (SWaP-C) in the industry, it saves valuable real estate for computers, sensors, targeting systems, and other devices that make mobile platforms highly effective.
|Product Model||MILTECH 907|
|Ports||5 x 10/100/1000 + 1 D-Type 44 pin connector|
|DIMS||113 mm x 54 mm x 40 mm|
|Connector||Power + LAN ; 3 Separate pins for RS232 management|
|Operating Temp||-45°C to +85°C|
|MIL-STD||MIL-STD-810F/G/M, MIL-STD-461E, MIL-STD-1275, MIL-STD-704|
|Power||24Vdc Nominal (16-36), 5W (Typical)|
