Managed Military Grade Embedded Ethernet Switch - up to 52 ports

The MILTECH 9136 is specifically designed for complex traffic applications featuring IEEE-1588 Capabilities and Synchronous Ethernet (SyncE), suitable for rugged military mobile tactical platforms, which require network centric interfaces.
With 24 triple-speed (10/100/1000Mbps) ports + 8 Interfaces SGMII + 4 QSGMII interfaces + 4 ports 10G, the MILTECH 9136 features both L2/L3 network switching and static routing capabilities, including virtual LANS (VLANS), traffic prioritization/QoS, IPv4/IPv6 support, and bandwidth aggregation. It supports all the latest networking protocols for redundancy, security, multicast, and management.With the industry’s smallest footprint, the MILTECH 9136 measures only 87x87mm to offer
performance and combination of size, weight, and power (SWaP) in the industry, saving valuable real estate for devices that makes mobile platforms highly effective.

download datasheet

Product Description

The MILTECH 9136 10GE transmission speeds and 12VDC power make it compatible with network devices and power systems.

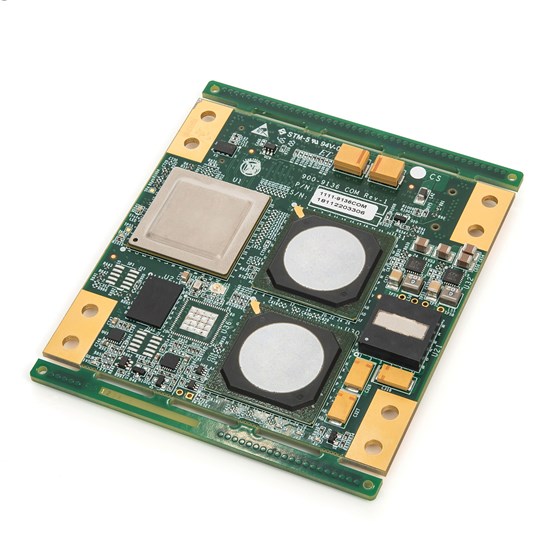

Conformally coated and with board-to-board connectors, it can easily be integrated as a module-based network building block in any military-grade communications platform. The MILTECH 9136 board level communication solution will withstand working temperatures of -40°C to +85°C and will comply with MIL-STD-810 & MIL-STD461 (when incorporated in a suitable enclosure).


Product Model MILTECH 9136
Management Managed
Ports 24 x 1G Copper ports + 8 x 1G SGMII interfaces + 4 QSGMII interfaces + 4 x 10G F/O ports
DIMS 87 mm x 87 mm
Connector 2 Board to board connector : TE P/N: 3-1827231-6
Weight 250g
Operating Temp -45°C to +85°C
Power 12VDC, 15W (Typical)
