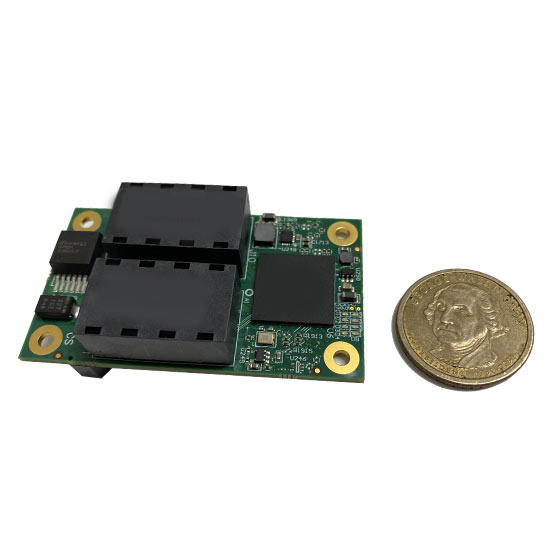

The MILTECH718 is a rugged, cost-effective, ultracompact board-level Ethernet switching solution (70x40mm). Equipped with 8GbE 10/100/1000Mbps ports, This board - level switch is ideal for integration directly on the users main system through board-to-board connectors such as: Unmanned aerial vehicles (UAVs) or Drones, land autonomous vehicles (UGVs), Robots and other unmanned support vehicles. through board-to-board connectors. The MILTECH718 consumes only 5W of power and uses 9-32VDC.
The MILTECH 718 ruggedized design features mechanical packaging enhancements designed for MILSTD-461E, MILSTD-810F/G and IP68 compliance when installed in an appropriate enclosure.
| Product Model | MILTECH 718 |
| Management | Unmanaged |
| Ports | 8 x 10/100/1000 |
| IMMERSION | IP68 |
| DIMS | 70 mm x 40 mm |
| Connector | Power + LAN : Samtec Board-to-Board |
| Weight | 52 g |
| Operating Temp | -40°C to +80°C |
| MIL-STD | MIL-STD-461E, MIL-STD-810F/G, IP68 |
| Power | 9-32VDC, 5W (Typical) |
